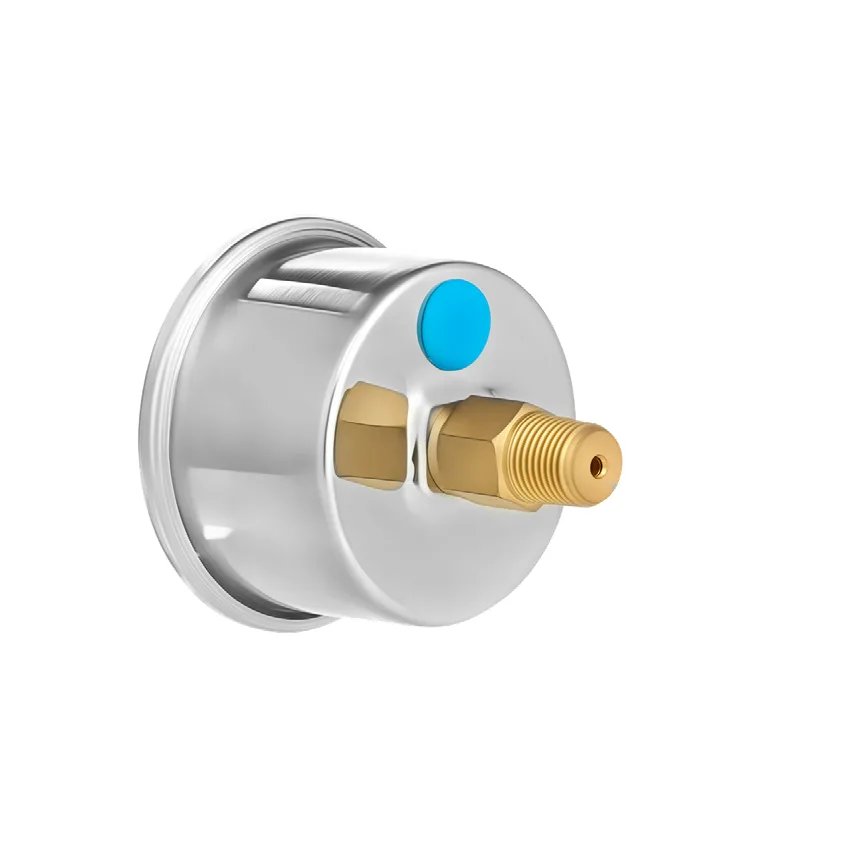

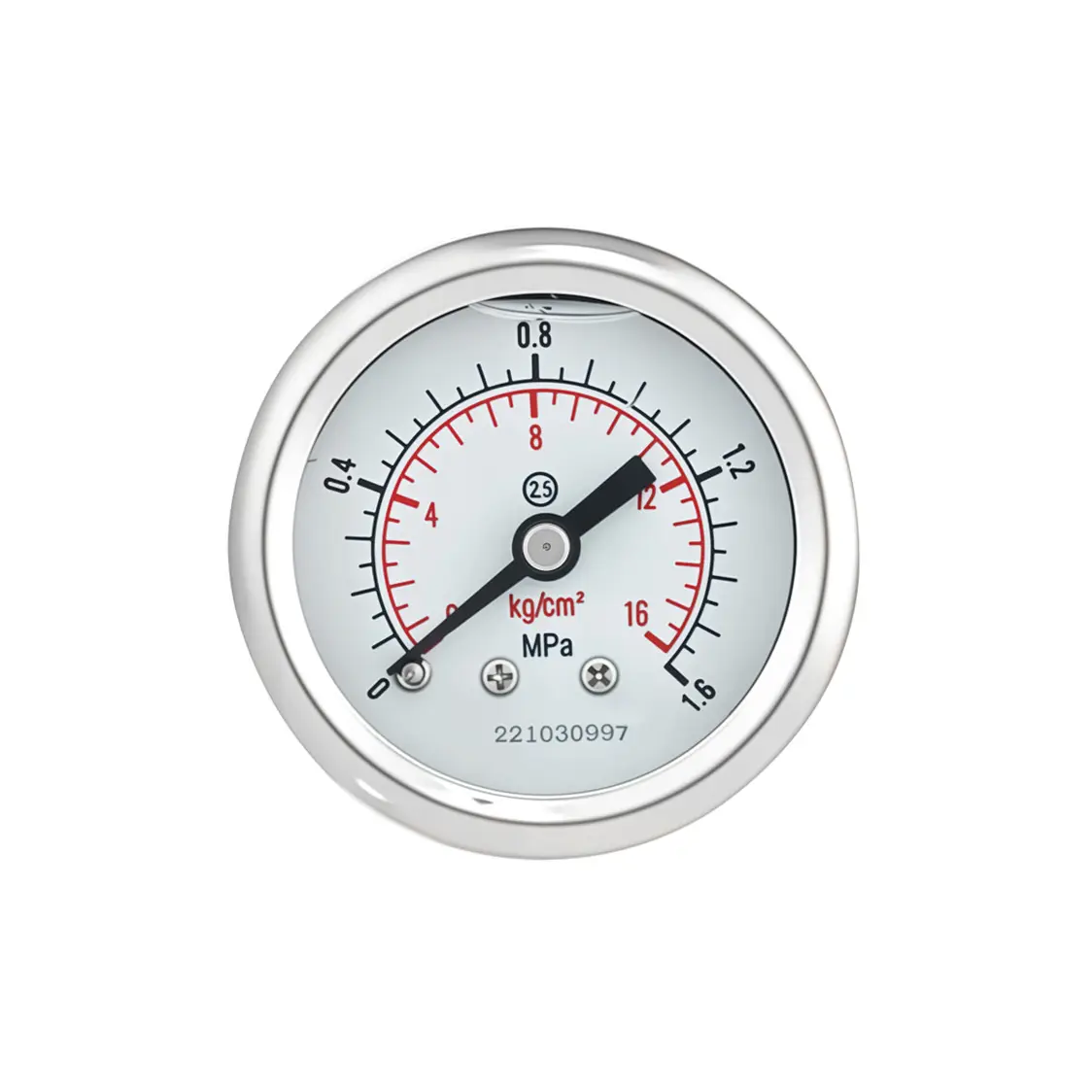

1.8″ Oil-Filled Stainless Steel Center Back Connection Pressure Gauge, ±2.5% Accuracy
Stainless steel oil-filled pressure gauge with SS304 case and bezel and polycarbonate lens, suitable for panel or rear-mount installations and vibration damping.
Pressure range 0–1.6 MPa, with customizable connection options available.
Categories:
Oil-Filled Pressure Gauges
| Model | AT-YN40Z01 |
| Dial Size | 1.8″ (46mm) |
| Connection | G1/8 M8*1 M10*1 center back (Can be customized) |
| Case | SS304 |
| Bezel | SS304 |
| Lens | Polycarbonate |
| Accuracy | ±2.5% Pressure |
| Range | 0 to 1.6MPa (Can be customized) |
